Key Features
- LOW PROFILE: 2.4 inches Tall with 3-5 dBi Gain -- Omni-Directional 4x4 MIMO Antenna -- Indoor/Outdoor Use

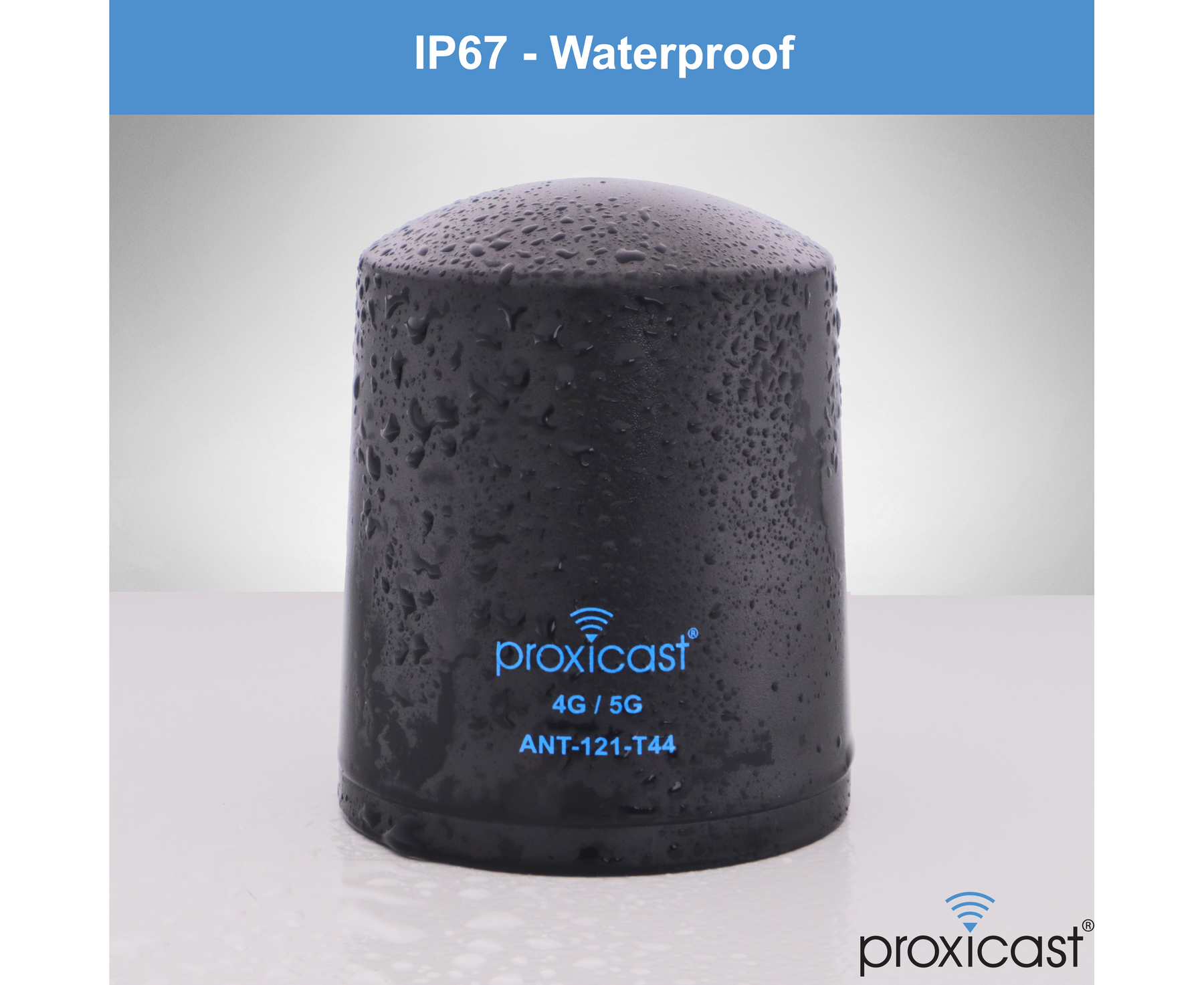

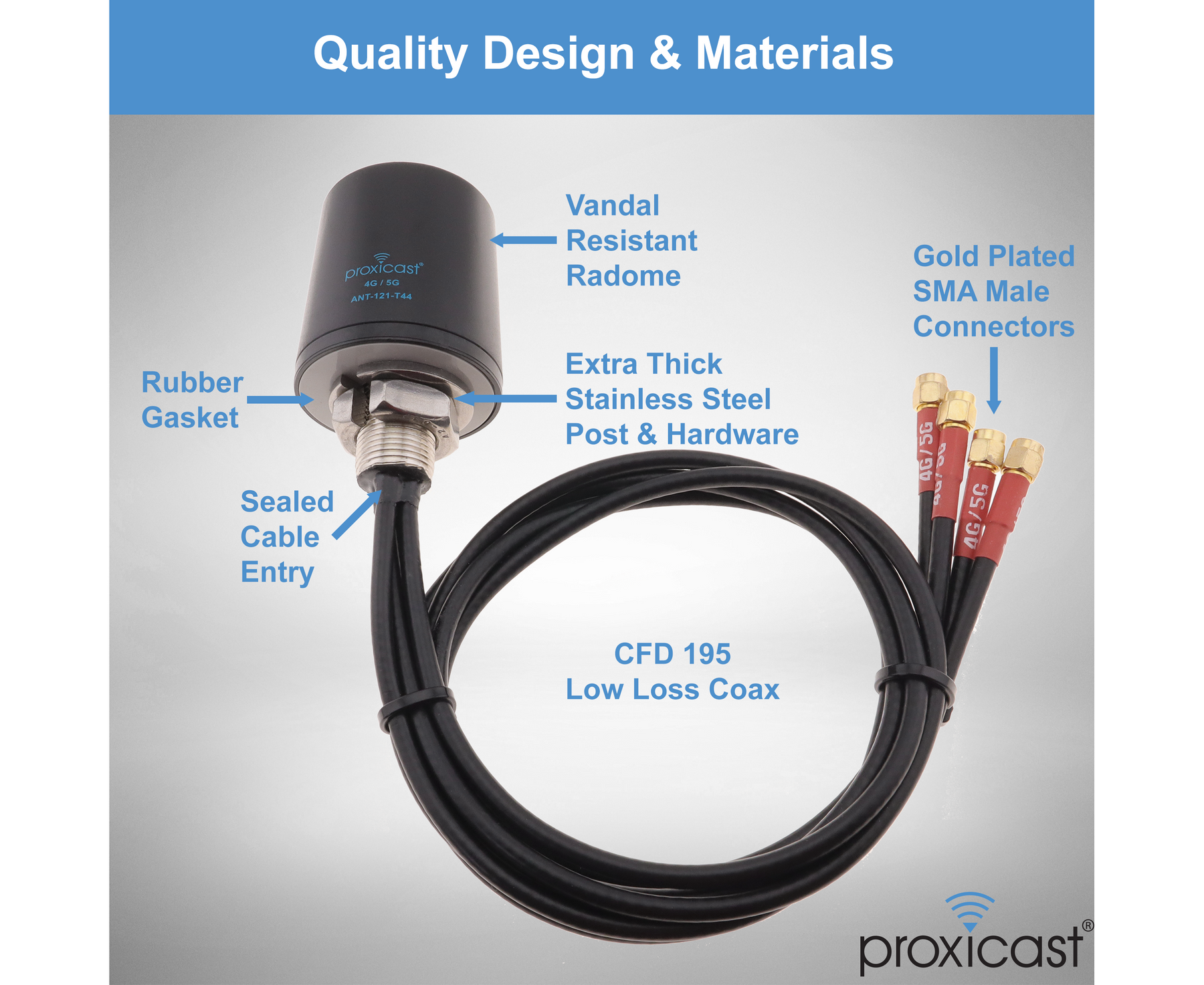

- PRO-GRADE QUALITY MATERIALS & DESIGN: Vandal Resistant & IP67 Weatherproof -- High Impact Plastic -- Heavy Duty Stainless Steel Mounting Hardware -- No Exposed Cabling

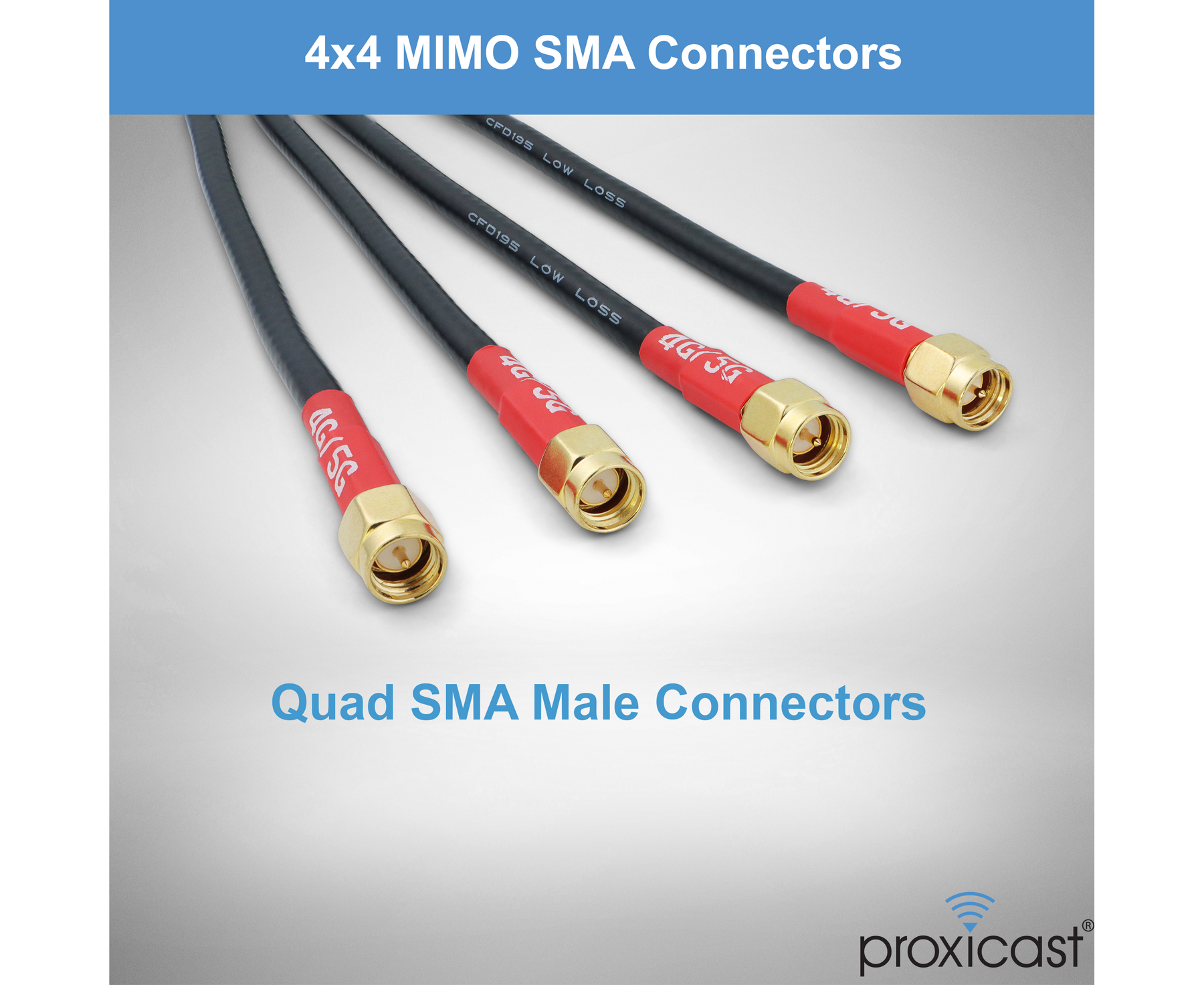

- LOW SIGNAL LOSS: Thick Double Shielded CFD195 Low-Loss Coax Cables with Gold-Plated SMA Male Connectors -- Less than 1/2 the loss of thinner LMR100 / RG174 coax
- 4 IDENTICAL ISOLATED OMNIDIRECTIONAL ANTENNA ELEMENTS: Covers all Sub-6 (FR1) 4G & 5G Wireless Frequency Bands (600-6000 MHz) -- Connect any lead to any cellular antenna port on your device
- WORKS ON ALL NORTH AMERICAN & Worldwide 4G/LTE & 5G Cellular Networks such as AT&T, T-Mobile, Verizon, US Cellular, Bell Canada, Rogers, Telus, Digicel, Moviestar, Telcel, and others
- COMPATIBLE WITH 4X4 MIMO Routers & Modems from Cisco, Cradlepoint, Digi, MoFi, Peplink, Robustel, Telktonika, KuWFi, Yeacomm, InHand, Linovision and others. Some models may require connection adapters.
- IDEAL FOR: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance & Security (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage

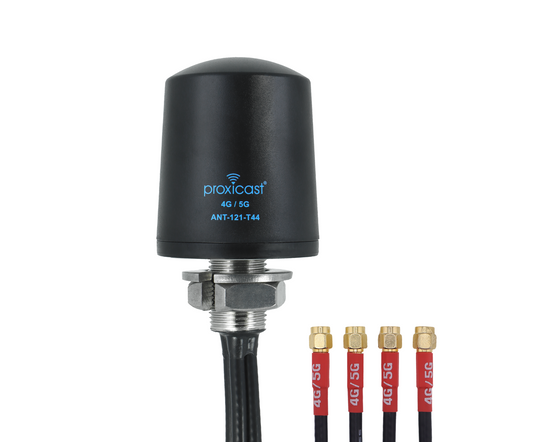

This low profile (2.4 inch tall) fixed mount omni-directional 5G external antenna provides 3 to 5 dBi of gain and supports all sub 6 GHz cellular frequency bands for AT&T, Verizon, T-Mobile, Bell, Rogers, Telus and other carriers worldwide.

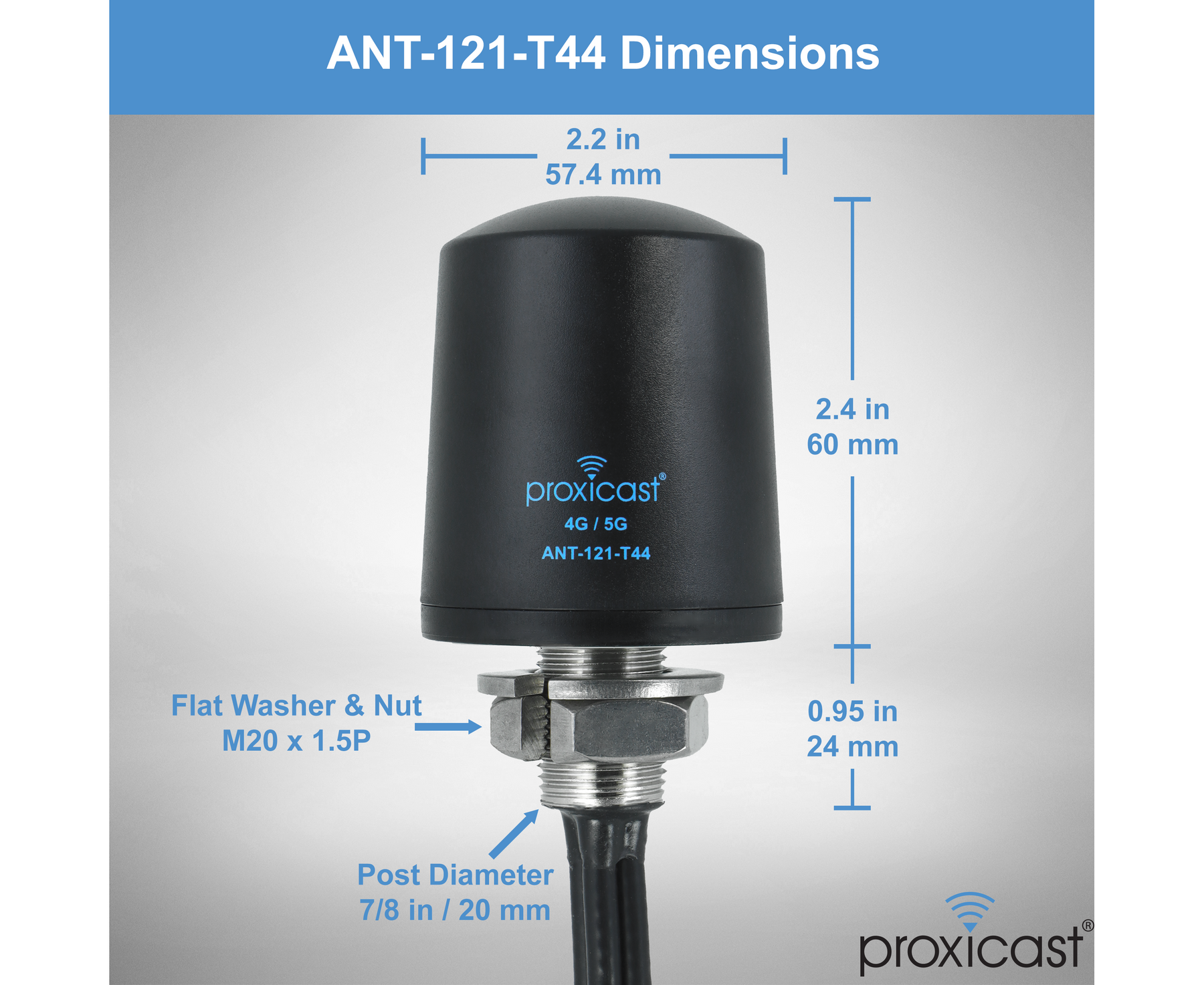

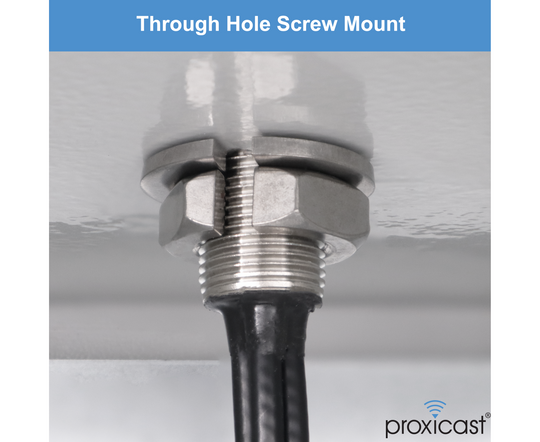

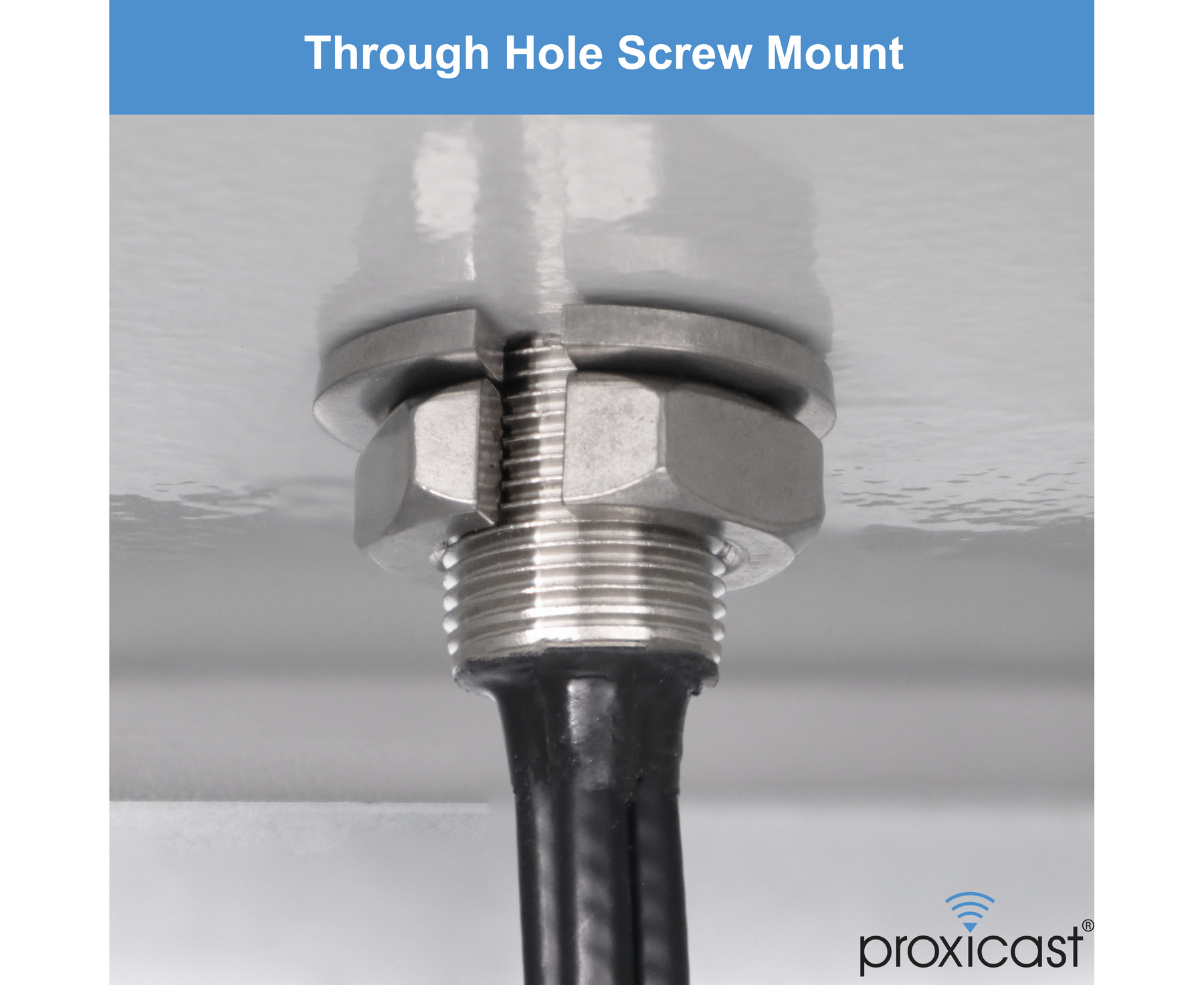

Permanently mounts via a 7/8 in (20 mm) hole with internal nut. Resists vandalism with no exposed coax cable, a high impact polycarbonate radome shell and an extra thick stainless steel threaded mounting post and hardware. Completely waterproof (IP67).
Four integrated SMA male plug connectors mate with SMA female jacks found on most cellular modems and routers.
Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67).
* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.
